FT6-V5

Finger touch portable interactive whiteboard can turn any projection area to be the multi touch system (interactive board), such as a wall, floor, fabric screen, ordinary white(green)board, table, TV set, LCD screen and so on. Using Oway device, you can fully control your computer and any software on board by the finger or IR pen to make accurate writing and annotating.

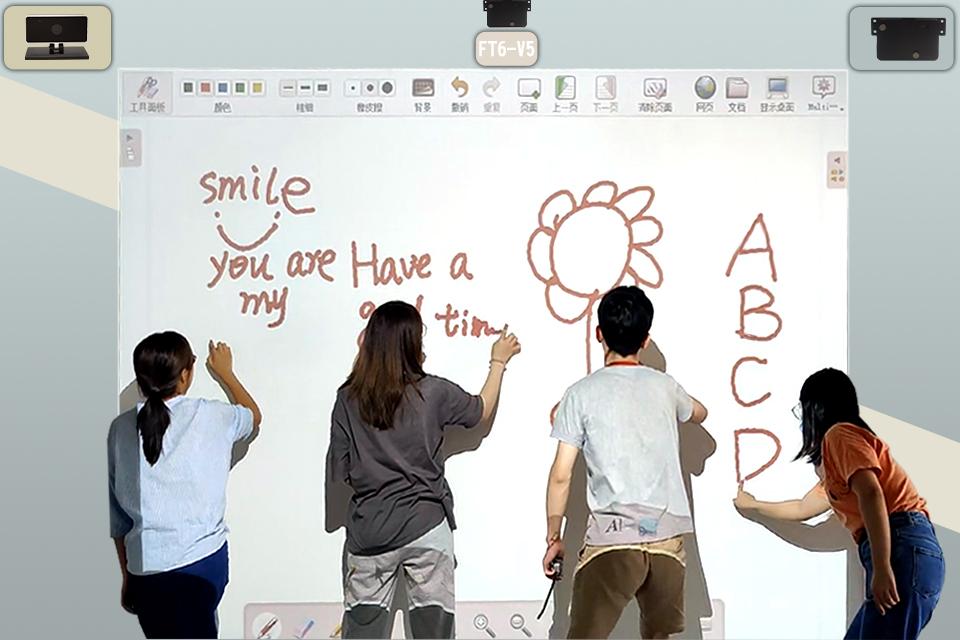

Large screen handwriting

Supports large-screen handwriting up to 220 inches, you can freely choose between handwriting and pen writing, these two methods have their own characteristics.

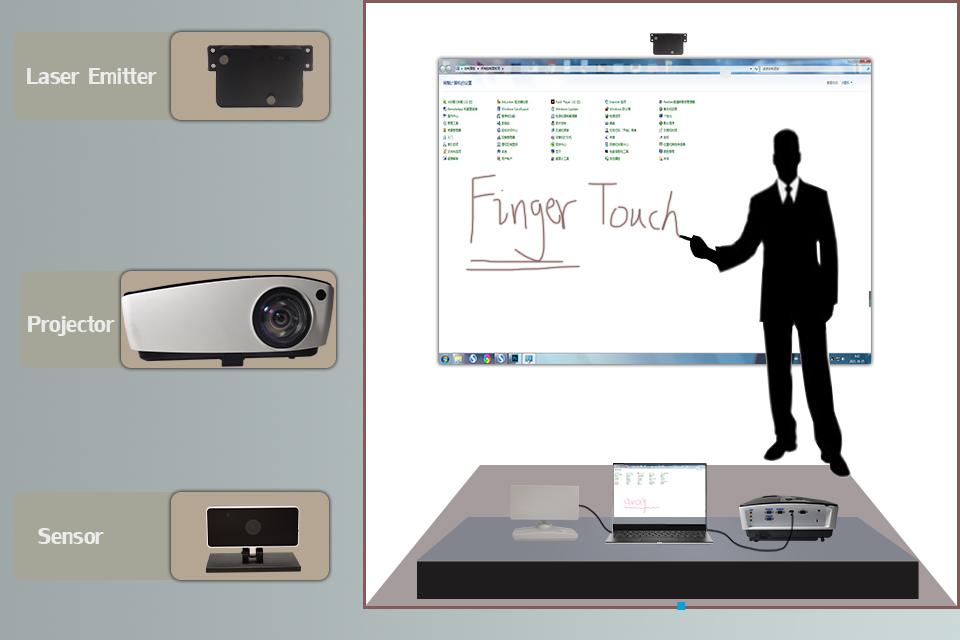

Easy to install

The product only needs to be connected to the computer、projector and the sensor, and the positioning is automatically completed. The installation is very convenient. The whole process only takes about 2 minutes.

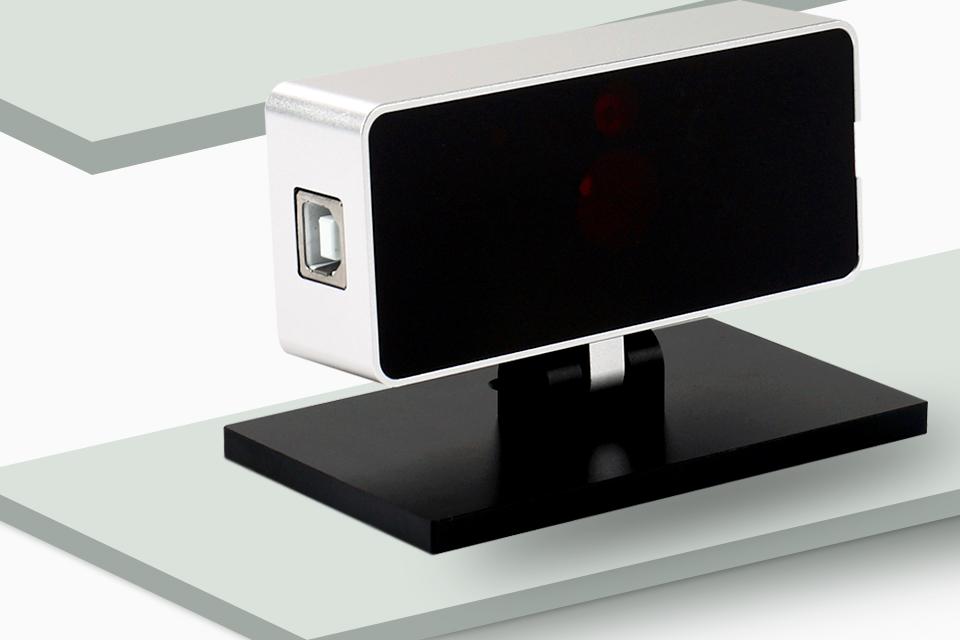

Well made

The product is made of an all-metal shell, and the feel and quality are absolutely top-notch, so there is no need to worry about product defects.

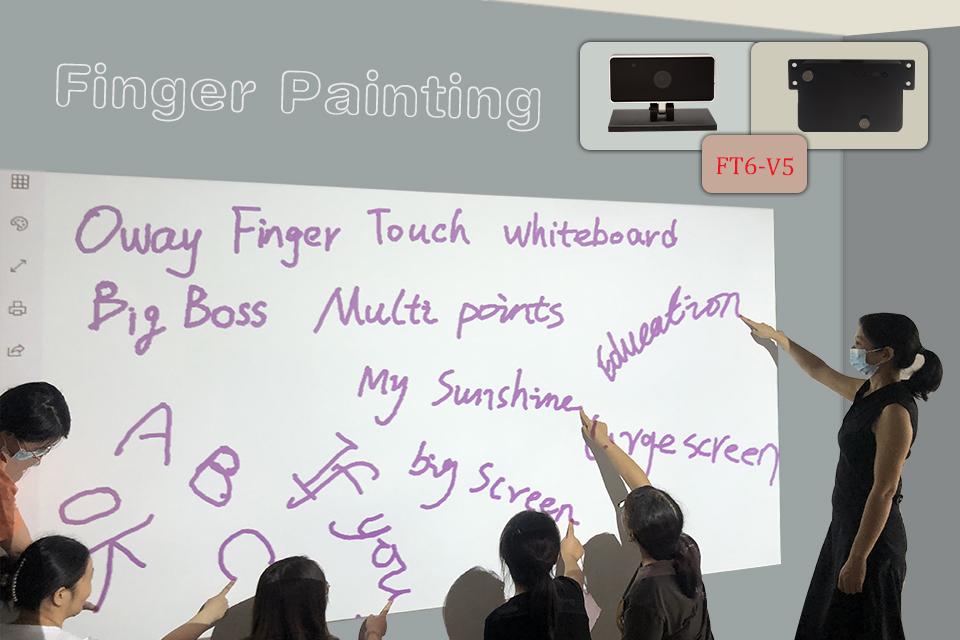

Multi users (support 100 points)

Supports simultaneous use of 100 touch points, all software that supports windows native multi-touch support multiple points; for example, one finger writes and two fingers zoom in/out; multiple users are allowed to write at the same time.

Basic Info.

FT6-V5
Calibration	Automatic(5 seconds) / Manual (4/15 points)
Multi-touch	100 points touch,writing and erasing can be performed simultaneously
Latency	<6 ms
Filter	Software auto-control、Enhance stability
Min Active Size	30 inches
Max Active Size	Pen touch:220inches、Finger touch:150inches、Throwball game:400inches(no sunshine room)
Technology	Laser image calibration technology
Positional Accuracy	±1 pixel (resolution: 4096*4096)
Aspect Ratio	4:3/16:9/16:10
Projector Ratio	Ultra short throw:0.28/0.16	Installation distance:about 0.4 - 1m
	Short throw（Middle throw）:0.83 /0.57/0.38	Installation distance:about 1 - 3m
	Long throw:1.28	Installation distance:about 3 - 5m
Power	5 W
Power of Laser Emitter	280mW*2
Laser Emitter Power Requirements	3.3V/2A
Infrared Coverage Area	6*8 m
Signal Refresh Rate	60/180fps
Connect	The sensor and computer are connected by USB cable,laser emitter just need power
Laser Emitter Weight	146 g
Sensor Weight	135 g
OS Requirement	Windows xp/vista/7/8/10/11
Software	OwayIWB、Multi-Board
Certification	CE、FCC、RoHS
Warranty	Sensor(3 years)、Laser emitter(1 year)、IR pen(1 year)
Package	1.Sensor、2.Emitter、3.IR pen、4.USB cable(10m)、5.Remote、6.Power adaptor、7.CD with software
