WB2900

Pen touch portable interactive whiteboard can turn any projection area to be the multi touch system (interactive board), such as a wall, floor, fabric screen, ordinary white(green) board, table, TV set, LCD screen and so on. Using Oway device, you can fully control your computer and and any software on board by the IR pen or finger to make accurate writing and annotating.

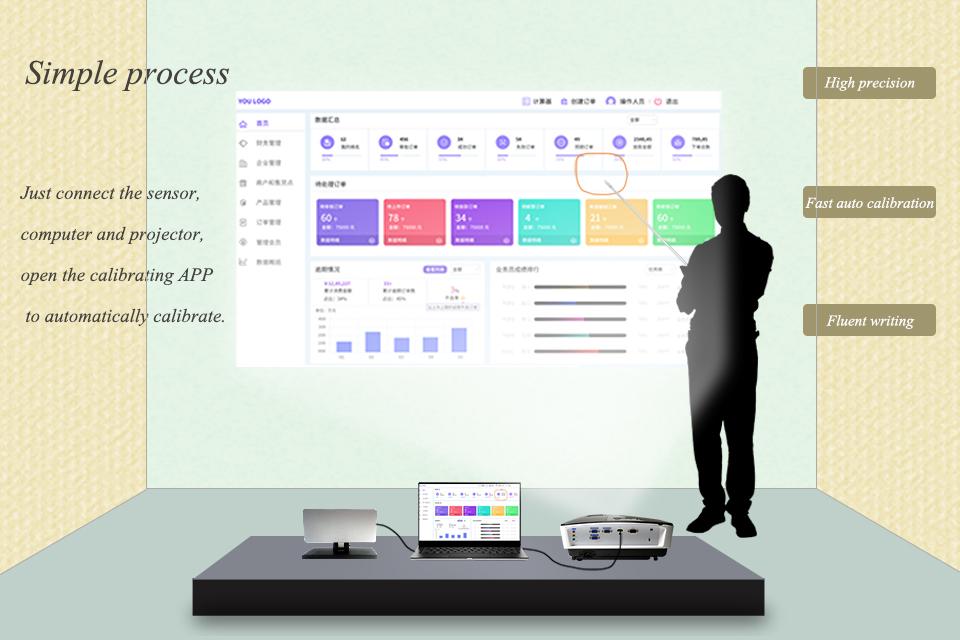

Fast and accurate automatic positioning

In just a few seconds, the sensor can complete rapid and automatic calibrating, and then you can write, teach or meet on the screen. With our infrared pen, you can click anywhere on the screen to get a quick response. To ensure you have a good experience.

Supports adjustable screen size, up to 300 inches

This is an adjustable large screen that integrates writing, creation, teaching, and conferences. Its portable camera sensor unit converts any flat surface (such as a projection wall or LED screen) into a mature multi-touch display.

Multi users (maximum support 255 points)

Support all native windows multi points software, such as using one pen to write, two pens to zoom out and zoom in a picture.support multi users to write at the same time, and will not interfere with each other,and the game also supports multi people to play at the same time.

Instant respond

10 ms immediate reaction rate, it is the fastest in market. Much saving your time and giving you a flying, silky, smooth writing imagine. with our laser gun, you can play a variety of interesting games. You will definitely find another different happy experience during the game.

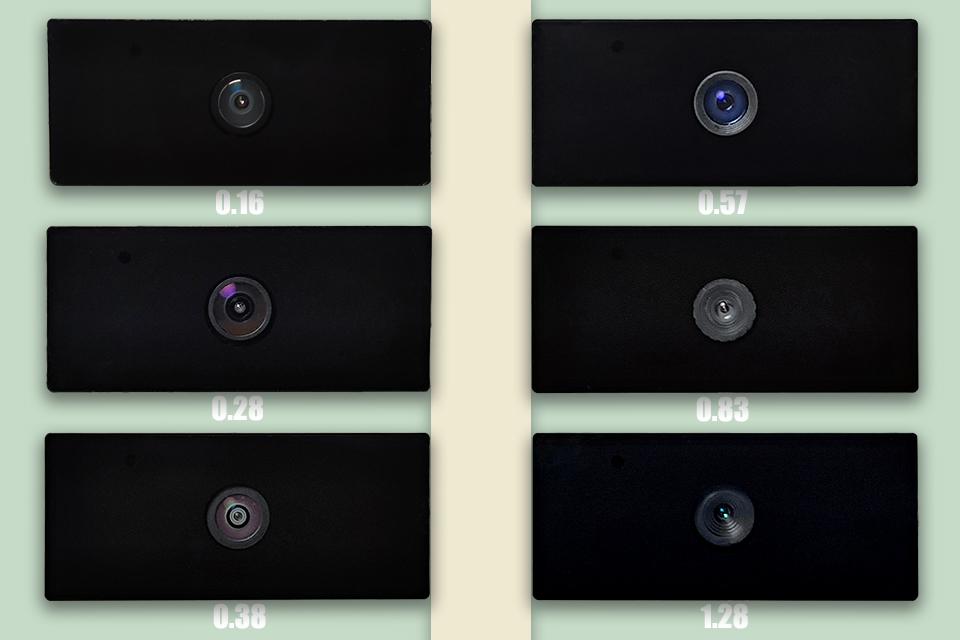

Applicable to various distances

We provide interactive sensors with various throw ratios, which can be used at different distances, and also we can provide matching solutions for different projection sizes. Different throw ratios and the distance from the projection screen are TR0.16 : 0.4~0.7m、 TR0.28: 0.7~1m、TR0.38: 1~1.5m、TR0.57: 1.5~2m、TR0.83: 2~3m、TR1.28: 3~5m, you can consult our customer service to match according to your environment.

Portable size

The total weight of the sensor and pen does not exceed 0.17kg, you can put it in your pocket, put it in the bag, it is very easy to carry, with it, you can take it out and use it at any time.

Basic Info.

Signal Receiver
Movement Detection	Infrared
Active Area(Max projection size)	300 inches
Active Area(Horizontal angle)	33° +/- 2°
Active Area(Vertical angle)	0° - 30°
Throw Ratio	0.16、0.28、0.38、0.57、0.83、1.28
Calibration Technology	Infrared calibrationing
Active Distance(From projection screen)	0.3 - 5 m
Connectivity Interface	1 * USB cable(connection distance up to 20 m)
Power Requirement	5 W(from USB port)
Size	LWH:855860mm
Power Consumption	5 W
Color	Gray
Weight	67 g
IR Pointer
Movement Detection Technology	Led light
Power Requirement	AAA * 2
Trigger Methods of Pointer	Button
Pen Body Weight	87g(with battery)
Pointer Extendable Length	417 - 608mm(length)、8 - 15mm(diameter)
Net Weight	68 g
IR Pen
Movement Detection Technology	Led light
Power Requirement	AAA * 2
Pen Body Dimension	163mm(length)、8 - 14mm(diameter)
Pen Weight	60g(with battery)
Net Weight	37 g
System Requirements
OS Required	Windows xp/vista/7/8/10/11、Ubuntu、Debain、Mac os
Processor Type	AI high-speed processor
RAM Size	128 MB
Min Hard Drive Space	30 MB
