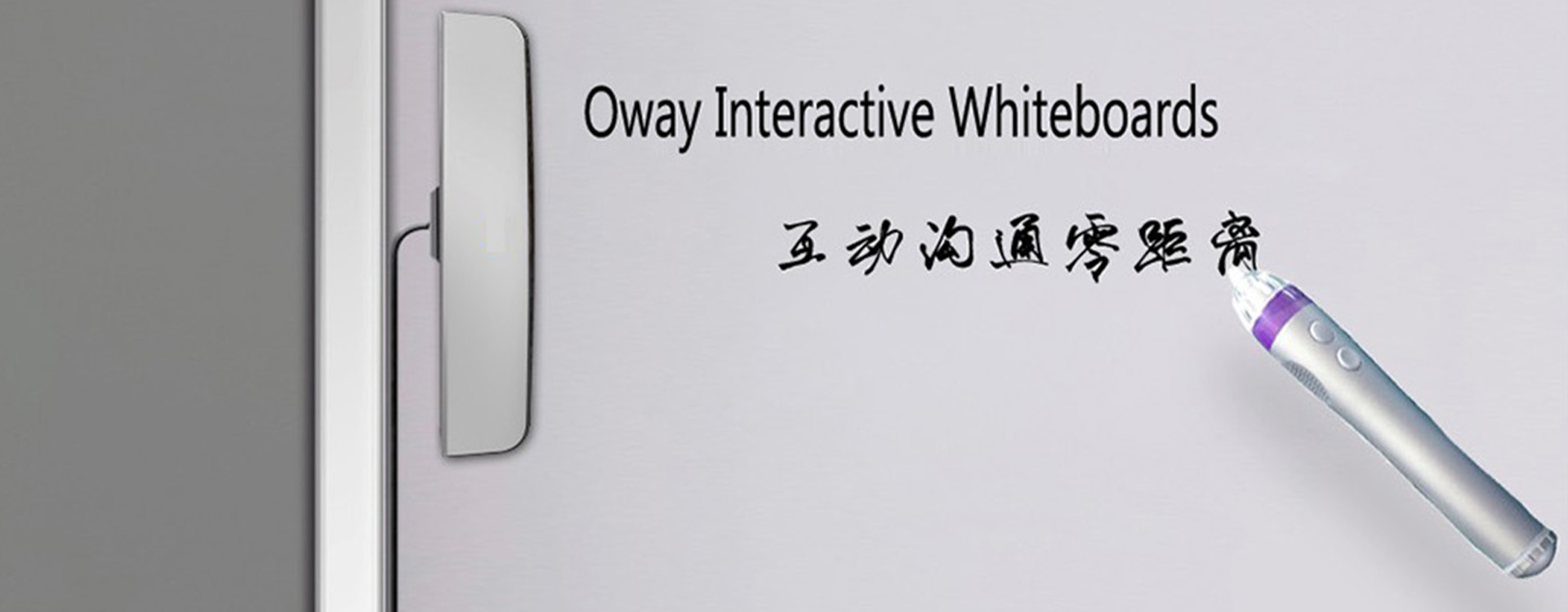

WB4700

WB4700

WB4700 adopts wired transmission method, only need to connect it with computer or smart TV or other equipment, it can turn (such as TV screen, ordinary whiteboard, white wall, glass, LED screen, LCD screen, etc.) into an interactive whiteboard or the touch screen can be powered directly through the USB interface.

Many applicable scenarios

Many applicable scenarios

The product is small and easy to install, and there is no requirement for the location required for installation. Therefore, our products can be used in exhibitions, training, conferences, teaching and other scenarios. The products use wireless transmission, so the entire process is very convenient.

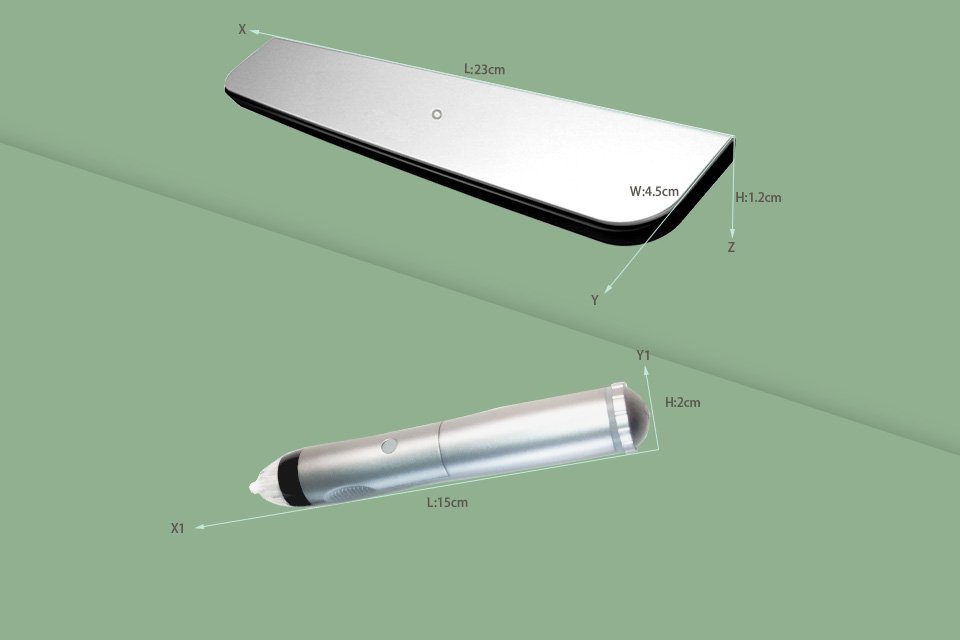

Small in size & light in weight

Small in size & light in weight

The total weight of the product does not exceed 0.2kg, you can put it in your pocket, put it in the bag, it is very easy to carry, with it, you can take it out and use it at any time.

Different calibration system can be used

Different calibration system can be used

The WB4700 series supports Windows, Mac, Linux and Android systems. supports 30-100 inch screens, can work with computer + projector, smart tv and smart projectors.

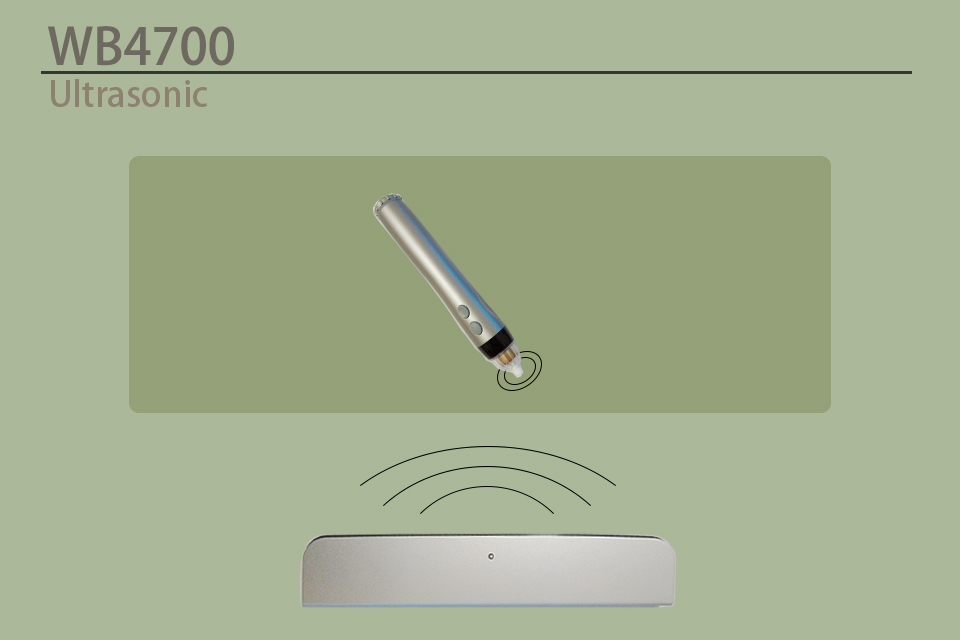

Using ultrasonic technology

Using ultrasonic technology

Multi-channel signals, not easy to block, capture more accurately when writing. The emission range is wide, and it is recommended to install the sensor on the edge of the whiteboard or screen to achieve the maximum signal area capture.

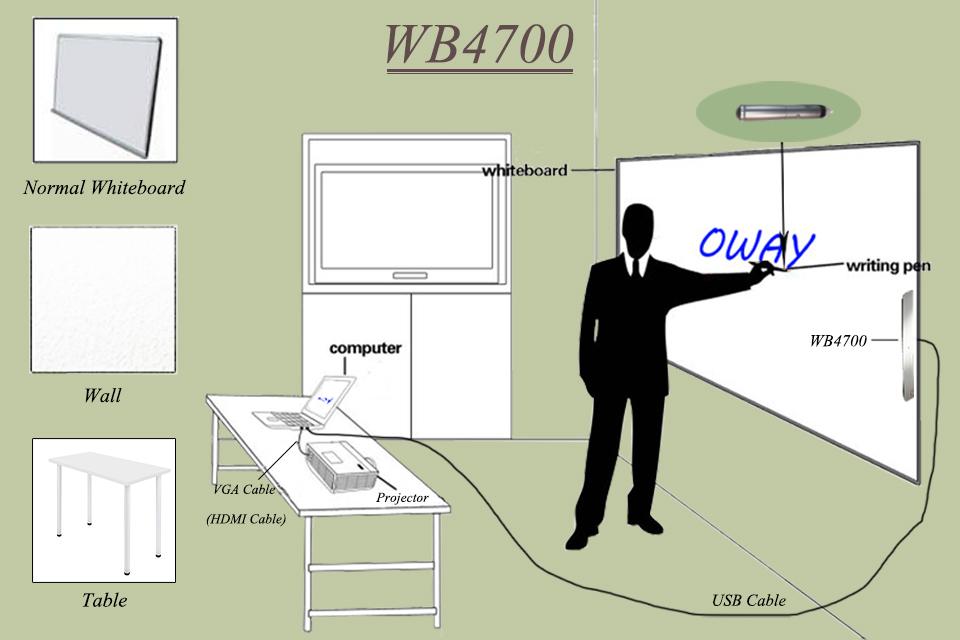

Easy to install

Easy to install

Plug-and-play solution-no need to install drivers, do not occupy computer memory, save computer space, only need to connect your sensor and computer with a data cable, and then you can experience its interactive functions.

Basic Info.

WB4700
Working principle Ultrasonic
Active area 120 inches
Transmission Wired
OS required Windows xp/2003/vista/7/8/10/11、Ubuntu、Debain、Mac os、Android、Chrome
Calibration 9 points
Communication distance 20 m
Power consumption 0.5 W
Response time 3ms(depends on computer)
E-pen emitted Ultrasonic
E-pen weight 57g(with battery)
E-pen Battery required AA x 1
