Pen touch portable interactive whiteboard can turn any projection area to be the multi touch system (interactive board), such as a wall, floor, fabric screen, ordinary whiteboard, table, TV set, LCD screen and so on. Using Oway device, you can fully control your computer and and any software on board by the IR pen or finger to make accurate writing and annotating.

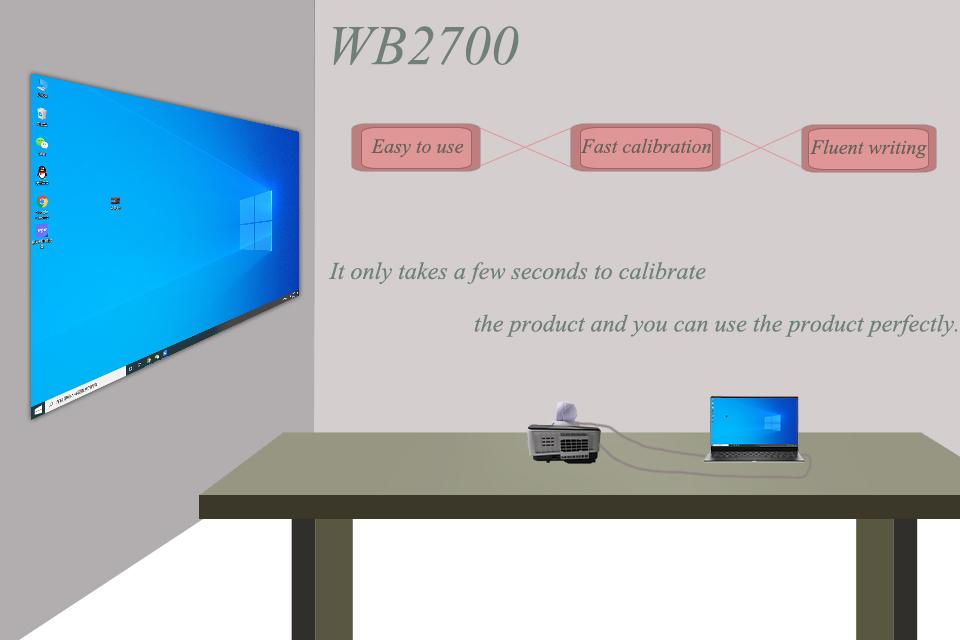

Hand calibration, 4 calibration points, 15 calibration points special for big screen. In few seconds, calibration can be successful,and everything is ready.

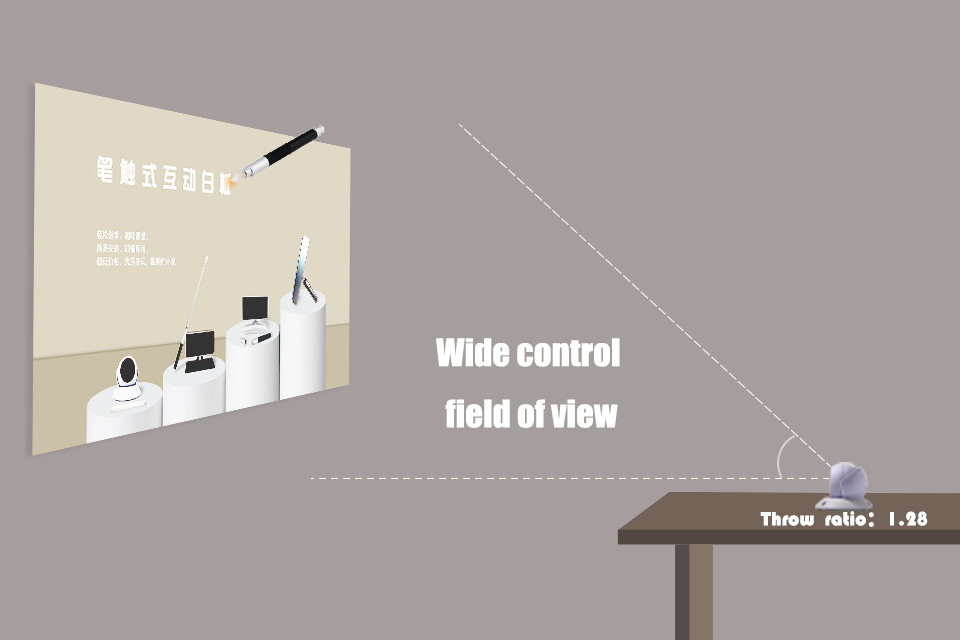

The throw ratio of WB2700 is only a version of 1.28. You can place it at a distance of 3~5m from the projection screen. You can adjust the scope of the field of view by adjusting the lens of the sensor. The lens of the sensor can rotate up to 50°. A large effective operating range can be formed within a distance of 3~5m to accurately and effectively capture your operations.
This is an adjustable large screen that integrates writing, creation, teaching, and conferences. Its portable camera sensor unit converts any flat surface (such as a projection wall or LED screen) into a mature multi-touch display.
Support all native windows multi points software, such as using one pen to write, two pens to zoom out and zoom in a picture.support multi users to write at the same time, and will not interfere with each other,and the game also supports multi people to play at the same time.

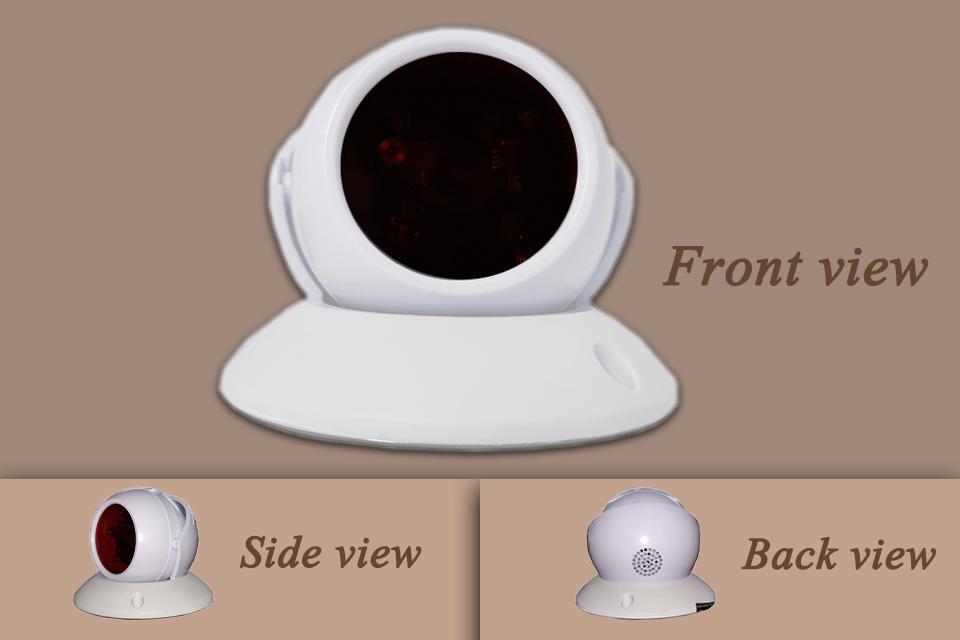

The high-quality plastic frame, the appearance is very exquisite, it is like an ornament wherever it is placed, allowing you to have a relaxed working environment and a pleasant working experience.
Signal Receiver | |
Movement Detection | Infrared |
Active Area(Max projection size) | 150 inches |
Active Area(Horizontal angle) | 33° +/- 2° |
Active Area(Vertical angle) | 0° - 30° |
Throw Ratio | 1.28 |
Calibration Technology | Infrared calibrationing |
Active Distance(From projection screen) | 3 - 5 m |
Connectivity Interface | 1 * USB cable(connection distance up to 20 m) |
Power Requirement | 5 W(from USB port) |
Size | L*W*H:103*103*80 mm |
Power Consumption | 5 W |
Color | Lavender |
Weight | 177 g |
IR Pointer | |
Movement Detection Technology | Led light |
Power Requirement | AAA * 2 |
Trigger Methods of Pointer | Button |
Pen Body Weight | 87g(with battery) |
Pointer Extendable Length | 417 - 608mm(length)、8 - 15mm(diameter) |
Net Weight | 68 g |
IR Pen | |
Movement Detection Technology | Led light |
Power Requirement | AAA * 2 |
Pen Body Dimension | 163mm(length)、8 - 14mm(diameter) |
Pen Weight | 60g(with battery) |
Net Weight | 37 g |
System Requirements | |
OS Required | Windows xp/vista/7/8/10/11、Ubuntu、Debain、Mac os |
Processor Type | AI high-speed processor |
RAM Size | 128 MB |
Min Hard Drive Space | 30 MB |
